Ethernet Panel

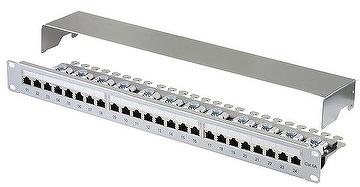

Cat.6A Ethernet Patch Panel

  • Certification:CE, ISO 9001 2008
  • Made In:Taiwan, ROC
  • Model No.:Cat.6A Panel
  • Cat.6A Ethernet Patch Panel

    Key Features




    Qualified Screened Class EA / Category 6A

    Permanent Link/Channel ofANSI/TIA-568-C.2


    ISO/IEC11801 AMD 2

    CENELEC EN 50173-1


    Current Rating: 1.5 Amps

    Insulation Resistance: 500 MΩMinimum

    Contact Resistance: 10 mΩMaximum

    DC Resistance: 0.1 ohmsMaximum

    Shield Transfer Impedance @100 MHz 2000 mΩ Max.


    Plug Insertion Life: 750Cycles Minimum

    Plug & Jack ContactForce: 100 Grams Minimum Using FCC-ApprovedPlug

    Plug Retention Force: 30 lbsMinimum

    Temperature: -40° to 150°F(-40° to 68°C)


    Frame : 1.5t SPCC, nickelplating

    Shield : 0.25mm thicknesscopper alloy plated with tin

    Plastic : High impact flameretardant plastic,

    PCB: FR4, 1.0mm Thickness

    Jack Wire: Ø0.46mm phosphorbronze gold over nickel plating

    Connector: Insulationdisplacement connector  (IDC) Accept AWG 22-26 solidwire

    Covershielded: 1.0t SPCC,nickel plating


Product Certification:
